A schedule of the pipes in the drainage network can be output to a CSV file.

The Save As option for Pipe Schedule is on the File menu.

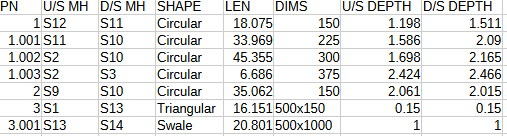

Here is an example extract of an exported pipe schedule, as viewed in a typical spreadsheet program:

Pipe Schedule (csv)

The CSV export includes the following columns:

• PN: Pipe number
• U/S MH: Upstream Manhole Name
• D/S MH: Downstream Manhole Name
• SHAPE: Pipe Shape
• LEN: 2D pipe length, measured from the inner face of the upstream manhole to the inner face of the downstream manhole, including internal offsets*
• LEN3D: 3D pipe length, measured the same way as LEN but accounting for elevation*
• DIMS: Pipe Dimensions
• U/S DEPTH: Depth to invert at the upstream end
• D/S DEPTH: Depth to invert at the downstream end

NOTE: A pipe network must have an outfall set in order to be exported. See Manhole Properties.

* Pipe lengths (2D and 3D) are calculated from the internal offset within one manhole to the internal offset within another. The internal offset is the distance the pipe is recessed from the inner face of the manhole. This offset is defined by the setting "DrainagePipeManholeInternalOffset" and can be updated in the Configuration Options.
Open-topped channels (e.g., swales) measure length directly from inner face to inner face, without applying the internal offset.
